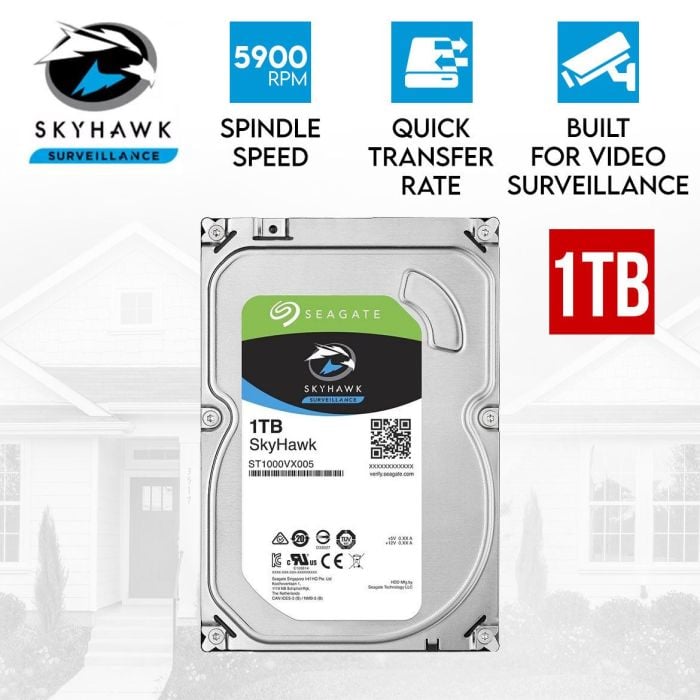

Seagate CCTV Surveillance 1TB Internal Hard Disk Drive

Seagate CCTV Surveillance 1TB Internal Hard Disk Drive is suitable for your NVR and DVR secuirty camera systems. Enhanced caching capabilities enable superior video recording quality.and faster data-transfer rates compared to other brands.


Full-track multiple-sector transfer capability without local processor intervention. It is a very reliable storage for your security camera systems. Easy installation and configuration with true plug-and-play connectivity.


SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns. It has Streaming video optimization that is consistent command completion times.


Get this Seagate Hard drive today.

PRODUCT HIGHLIGHTS

• Built for Surveillance

  • Built for CCTV 24/7 surveillance applications
• Reliable and Stable

  • Enhanced caching capabilities enable superior video recording quality
• SATA interface

  • The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface. Data-transfer rates with a default of 6Gb/s
• 5900 RPM

  • 5900 RPM spindle speed
• Full-track multiple-sector transfer capability

  • Full-track multiple-sector transfer capability without local processor intervention
• Quick Transfer Rate

  • High instantaneous (burst) data-transfer rates with a default of 6Gb/s
• Exceptional Continuous and Writing Performance

  • Enhanced caching capabilities enable superior video recording quality.and faster data-transfer rates compared to other brands
• Built-in Error Recovery

  • Protect your drive from unwanted data loss

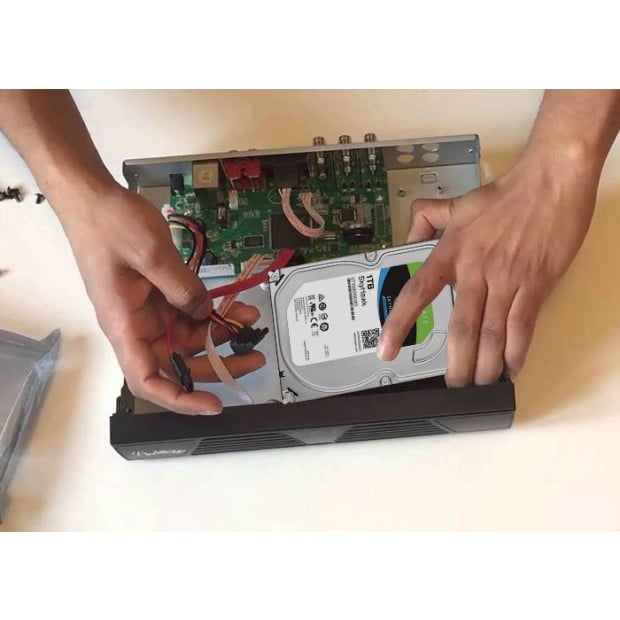

• Easy to install

  • Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options

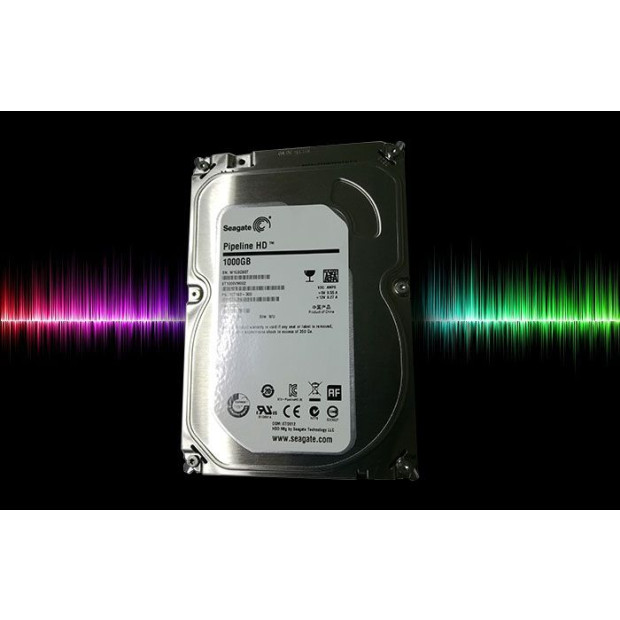

• Low Noise

  • Best-in-class acoustic performance means virtually silent operation 1.9 bels

ITEM DESCRIPTION

• Model: CCTHDISK1TB
• Formatted capacity (4K/sector)* 1000GB (1TB)
• Guaranteed sectors 1,953,525,168
• Heads 2
• Disks 1
• Bytes per sector 4K (512 bytes per sector emulated at the interface)
• Default sectors per track 63
• Default read/write heads 16
• Default cylinders 16,383
• Recording density (max) 1745KBPI
• Track density (avg) 331ktracks/in
• Areal density (avg) 566Gb/in
• Spindle speed 5900 RPM
• Internal data transfer rate (max) 1967Mb/s
• Sustained data transfer rate OD 151MB/s
• I/O data-transfer rate 600MB/s
• ATA data-transfer modes supported PIO modes: 0 to 4
• Multiword DMA modes: 0 to 2
• Ultra DMA modes: 0 to 6
• Cache buffer 64MB
• Average latency 5.1ms
• Power-on to ready (max) <6s
• Standby to ready (max) <6s
• Track-to-track seek time (typical) <1.0ms read; <1.2ms write
• Average seek (typical) <12.0ms
• Startup current (typical) 12V (peak) 1.6A
• Voltage tolerance (including noise) 5V 5% , 12V 10%
• Nonoperating temperature (Ambient C) 40 to 70
• Operating ambient temperature (min C) 0
• Operating temperature (Drive case max C) 75
• Temperature gradient (max) 20C per hour (operating)
• 30C per hour (nonoperating)
• Relative humidity 5% to 95% (operating)
• 5% to 95% (nonoperating)
• Relative humidity gradient (max) 30% per hour
• Wet bulb temperature (max) 26C max (operating)
• 29C max (nonoperating)
• Altitude, operating 60.96m to 3048m (200 to 10,000+ ft.)
• Altitude, nonoperating (below mean sea level, max) 60.96m to 12,192m (200 ft. to 40,000+ ft.)
• Operational Shock (max) 80 Gs at 2ms
• Nonoperational Shock (max) 350 Gs at 2ms
• Vibration, operating 2Hz22Hz: 0.25 Gs, Limited displacement
• 22Hz350Hz: 0.50 Gs
• 350Hz500Hz: 0.25 Gs
• Vibration, nonoperating 5Hz22Hz: 3.0 Gs
• 22Hz350Hz: 3.0 Gs
• 350Hz500Hz: 3.0 Gs
• Drive acoustics, sound power
• Idle** 1.9 bels (typical) , 2.1 bels (max)
• Seek 2.2 bels (typical), 2.3 bels (max)
• Nonrecoverable read errors 1 per 10 14th bits read
• Annualized Failure Rate (AFR) 0.55%
• Rated Workload Average annualized workload rating: <180 TB/year
• Contact start-stop cycles 50,000 at 25C, 50% rel. humidity
