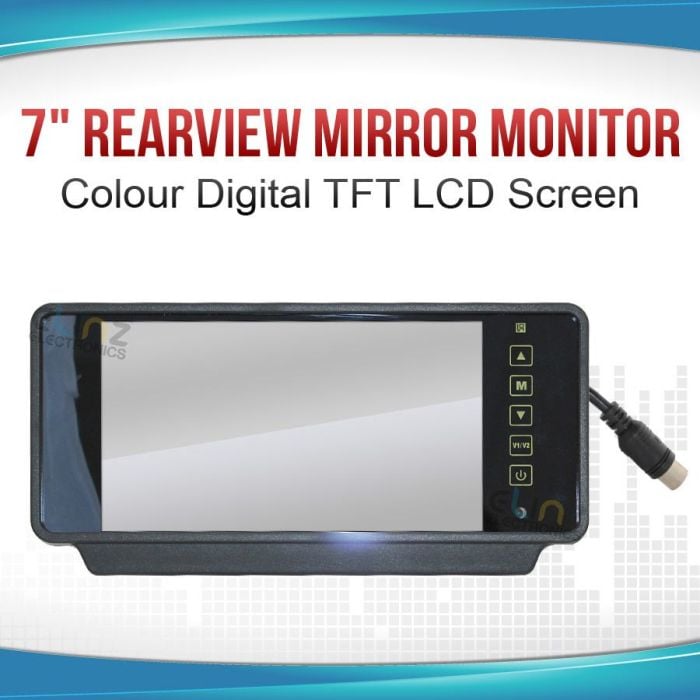

Elinz 7in Rearview Mirror Monitor 12v 24v 3 Av Inputs 4pin Advanced

Out of stock
SKU
83_r7mi
Be the first to review this product
$188
Ship to Calculate Shipping Cost
Credit Card
By subscribing you agree to our Terms and Privacy Policy and to receive marketing communications from which you can opt-out of at any time.
Add to Compare
Key Features

  • Huge 7" LED screen display picture behind vehicle

  • Reverse image will show on the screen automatically when the reverse gear is induced

  • Rearview image can also be shown on screen at all times

  • Shock resistant, designed specifically for heavy duty vehicle use

  • Input power: 10VDC to 32VDC

  • With grid line distance graph on/off

  • Original bracket replaces your existing rearview mirror

  • Anti-reflective clear vision mirror

  • 3 AV inputs, can be connected up to 3 reversing cameras


Specification of Mirror

  • Screen size: 7" LCD monitor (LED digital panel)

  • Resolution degree: 800 X 3 (RGB) X480

  • Contrast: 500:1

  • System: PAL/NTSC

  • Power supply: 10VDC to 32VDC

  • Power: About 5W

  • Working temperature: +0C-+60C

  • Storage temperature: -20C-+70C

  • Dot pitch:0.192 ( H) X 0.1805 (V )

  • Viewing angle U:50/D:60 L/R:70

  • Video: Three-way video inputs

  • We specially source for this anti-reflective rearview mirror,so even when the screen is not turned on, the monitor will show the rearview from the mirror clearly

  • Special glass ,could see clearly even in sunlight

  • Shock resistant- Built to withstand shock and vibration associated with industrial applications

  • 20G force for vibration an 100G for shock

  • Respond time: 30ms

  • Picture display format: 4:3/16:9

  • Five languages OSD menu: Chinese, English, Russian, German and French

  • The display with two video frequency input Automatic/manual switcher

  • Front panel controls with on-screen menu

  • Operation temperature:- 30 ? ~+70 ?
