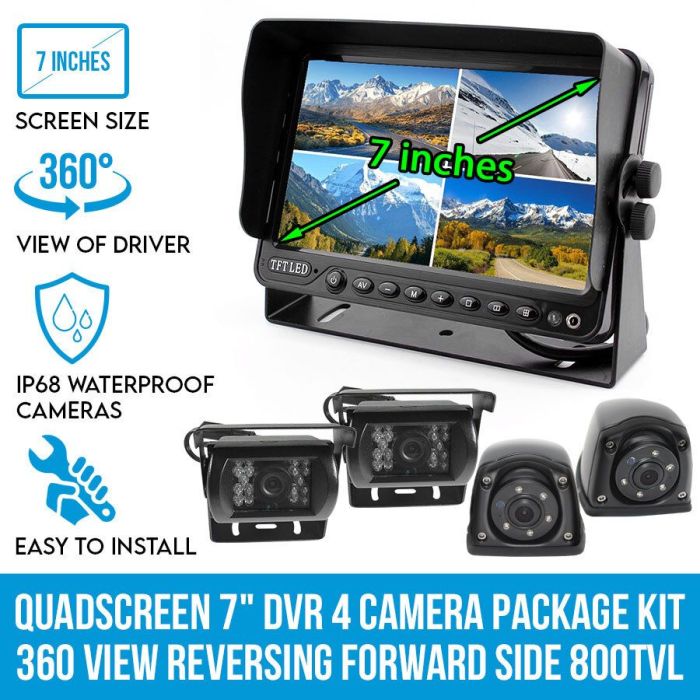

Quadscreen 7in DVR 4 Camera 360d View 12V 24V 800TVL

Quadscreen 7in DVR 4 Camera 360d View 12V 24V 800TVL Product Description:

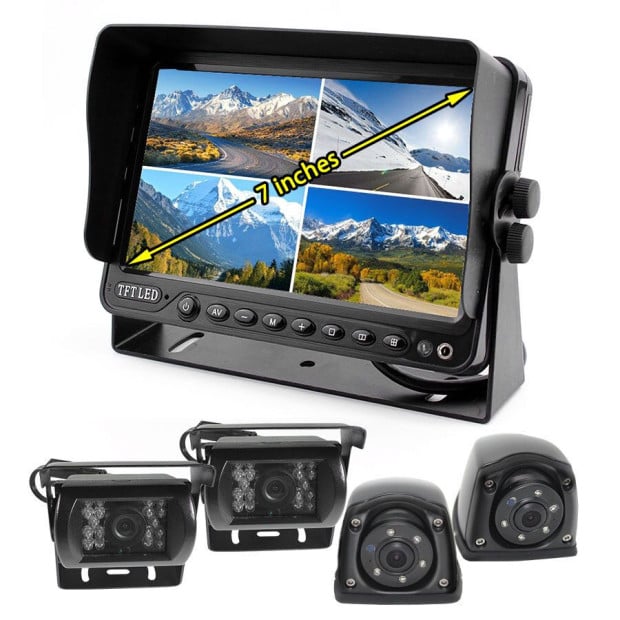

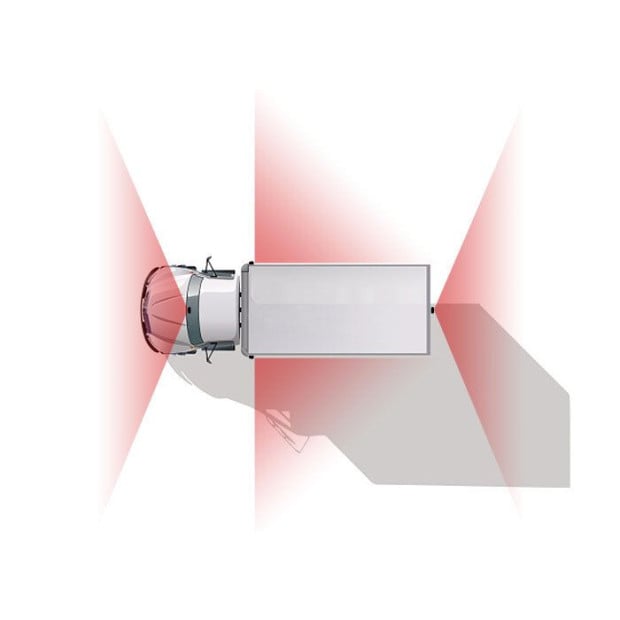

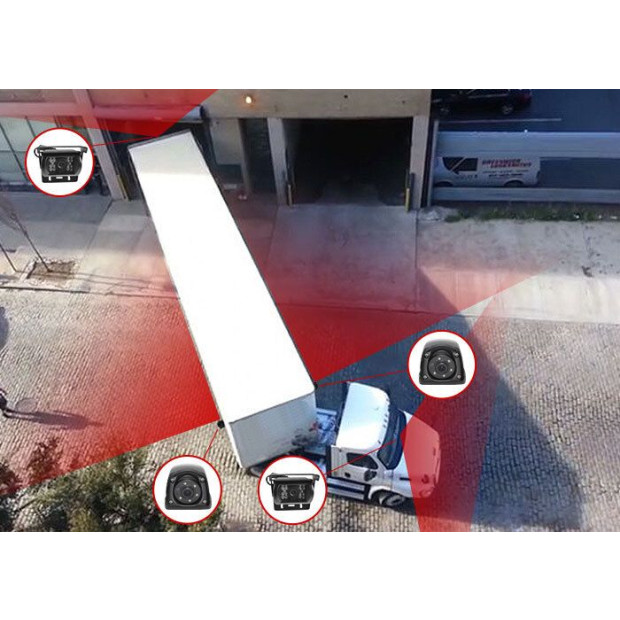

This 7 inch DVR reversing camera kits have 4x cameras one forward view camera), one reversing view camera and 2 side view camera providing a 360 degree view for the driver that can be used especially for buses or trucks. It has quadscreen monitor that can show the 4 camera views at the same time.


4 Channels simultaneously to full time live record and 4 ways video input, 4 ways audio input, 1 way video output. The forward view and reverse camera have 120 degree wide view angle and the side view cameras have 120 degree angle with 800TVL. All cameras have CCD image sensor made by Sharp Company and support night vision.


Installing a reversing camera monitor kit especially on large vehicles can surely add up safety and convenience in driving. It reduces blind spots and gives you more confidence in driving.

PRODUCT HIGHLIGHTS

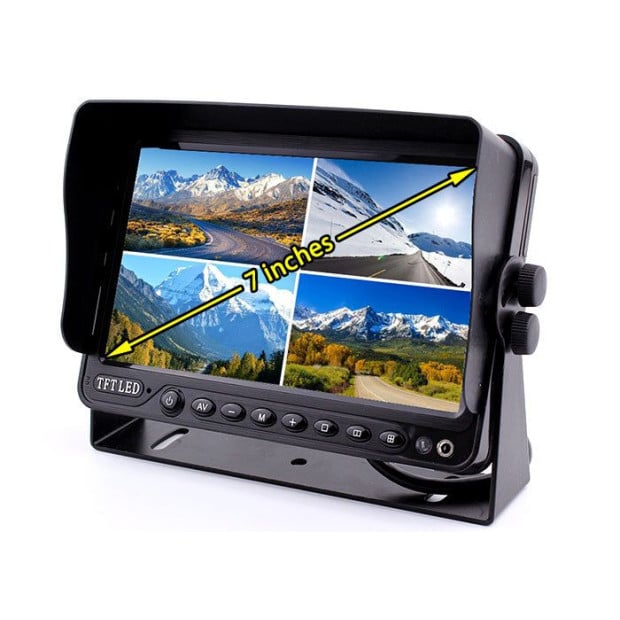

• 7 inch Quadscreen Digital TFT Panel

  • 7 inch quadscreen digital panel with resolution 800*R.G.B*480. Monitor has 4 Channels that can simultaneously record live full time
• Real Time Recording

  • It allows you to ecord real time and can see objects on their original places or position
  • You may easily control DVR using the remote control
• 3 Video Input + 1 Audio Video Input

  • V1/V2/V3/V4 switching - Can be connected up to 4 cameras, cameras can be powered up by the monitor, no extra power source required
  • Reversing camera image can show up automatically on the screen when reversing gear is induced by connecting the trigger wire to the reversing light
  • All cameras can be shown on the screen at all times when driving, perfect for truck or caravan that need to monitor the rearview all the time
  • Has only 1 audio video input, it should be plugged to Ch1 for audio video input to work
• 600TVL Heavy Duty, Night Vision and Waterproof Forward Camera

  • High resolution camera that can deliver clear images day and night
  • Camera with 120 degree wide angle
  • Reverse Camera has 18 IR LEDs
  • Colour infrared night vision waterproof CCD reverse camera
  • Image Sensor: CCD image sensor (made by SHARP company)
  • Clear view day or night
• Local Playback

  • Locally playback in channel 1 or 4 channels
• Save Recordings in SD Card

  • Camera recordings from the 1 Audio Video input are to be saved in SD card and cannot be played on the monitor
  • It can support up to 256GB SD card. (SD card not included)



    Note: Monitor do not have built-in speakers
• Bracket Screw Lock

  • With the bracket screw lock, it can hold the monitor in placed
• Rotational Angle Adjustment

  • You can adjust monitor view depending on your preference
• Monitor Button Panel Labels
• Wiring Diagram
• Image Modes
• Menu Operation Instruction

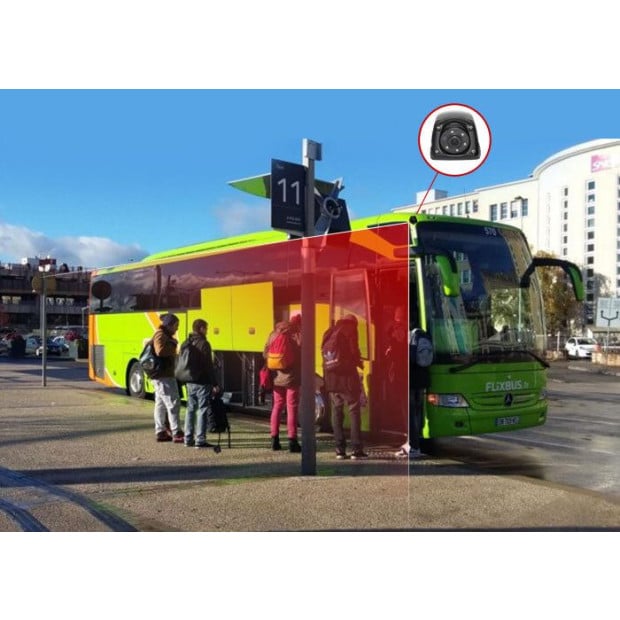

• New Heavy-duty Metal Mini Ball Side Camera

  • This heavy-duty new side camera is ideal for tough applications
  • It helps capture vehicle side views for in-cab display viewing
  • It is a smaller than other side view cameras. It compactly designed camera that can be easily mounted on the side of the vehicle
• CCD Image Sensor by Sharp

  • The CCD image sensor (made by SHARP company) provides better picture's clarity colour contrasting and sharpness than CMOS camera
  • Can last for longer use without heating up, so you can show the clear view at all time
• 10M advanced 4 PIN cable

  • Allowing the monitor ( monitor not included) to power up the camera no need to connect another power cable to camera
• IP68 Waterproof

  • Side view camera is completely waterproof with an IP68 rating
• 800 TV Lines side view camera

  • With high quality CCD Sensor this camera provides better picture's clarity, colour contrasting and sharpness than Normal CMOS camera
• 5 IR LED

  • It has 5pcs IR LEDs to provide better night vision and clear images in low light especially at night circumstances
• Extruded Aluminum Housing

  • Made of extruded aluminum case which is provides structural integrity, ensuring that the camera can perform well even under extreme conditions
• Suitable with 12V/24V power supply

  • It can be used with trucks/ bus/ caravans/ cars etc
• 120 degree Wide angle

  • Features 120 degrees viewing angle to show side view of vehicle
• Compact & Smartly Designed

  • Prevent accidents while parking or reversing

ITEM DESCRIPTION

• 7 inch digital TFT panel
• Aspect ratio:16:9 image
• Resolution:800*R.G.B*480
• Monitor controlled by buttons on panel
• DVR controlled by the remote
• 4 Channels simultaneously to full time live record
• System: PAL & NTSC Auto-switching
• Video decode H.264
• Audio decode ADPCM
• Recording by manually: time setting, alarm and moving detect
• Video search: time retrieval, fact retrieval, channel retrieval
• 3 Video Input + 1 Audio Video Input
• Full image/4 images adjustable
• Picture adjust with single and quad pictures
• Recording saved to SD card (support up to max 256gb sd card, sd card not included, to be purchased separately)
• Recording speed PAL:25 FPS NTSC:30 FPS
• Local playback in channel 1 or 4 channels
• Alarm in:4 switching value (Optional)
• Interface for saving:1 SD card slot
• One way ignition signal
• 8V/35V power supply
• LEDs: 5 IR LEDs
• Image Sensor: 800 TVL CCD image sensor (made by SHARP company)
• Min illumination: 0 Lux (5 IR LEDs)
• Camera Angle: 120 degree wide angle
• Colour: Black
• Compatibility: NTSC/ PAL
• Horizontal Resolution: 800 TV Lines
• Connection: 4 PIN
• Lens: Glass
• Housing: Extruded Aluminum
• IP Rating: IP68
• Power:1 W
• Voltage: DC 12-24V
