Thornado 13HP (389cc) OHV Stationary Motor Petrol Engine E-Start (25.4mm Horizontal Key Shaft / Q-Type)

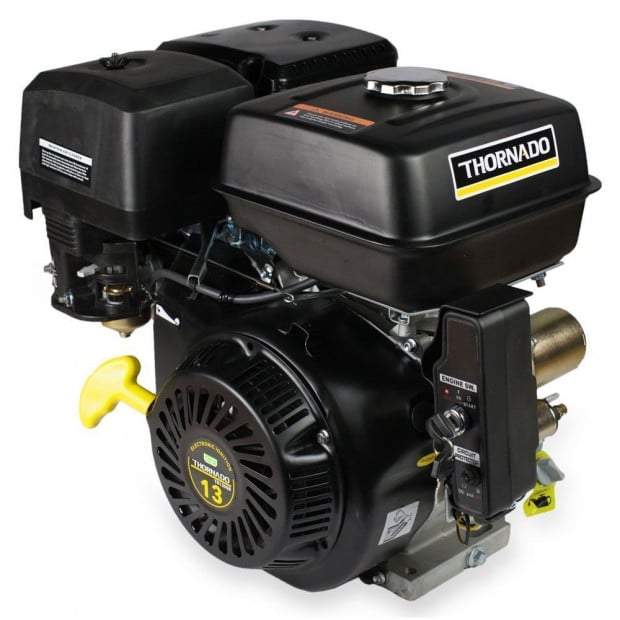

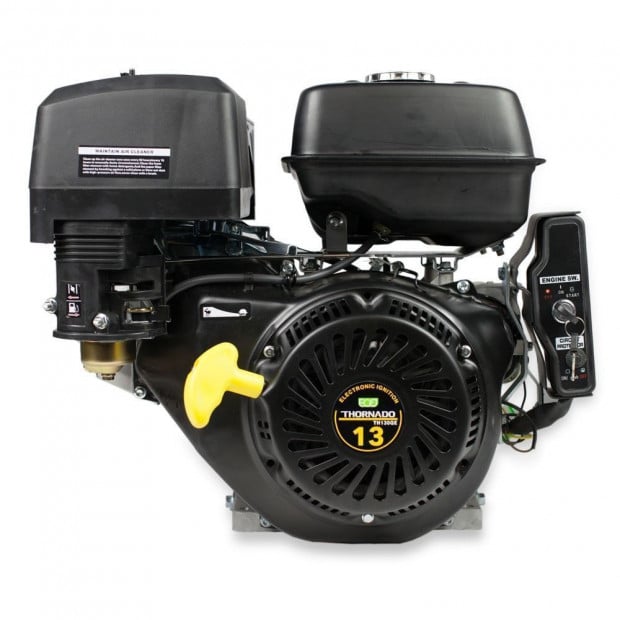

The Thornado 13HP stationary engine is a 4-stroke, single cylinder OHV forced air-cooled petrol engine with a both electric key and recoil starter that makes it easy to get the equipment running and on task. The horizontal shaft is ball-bearing mounted which make this engine an ideal replacement for most standard engine configurations. This engine features a durable ductile iron crank shaft and cast iron cylinder making it the perfect engine for variety of applications including water pumps, Go-karts, generator, wood chippers, Pressure Washers, Bench saws & other Agricultural uses.

Features:

• Type - Single cylinder 4 stroke, air cooled
• Displacement - 389cc
• Bore x Stroke - 88 x 64
• Continuous HP / Rpm - 11 HP / 3600 Rpm
• Max Power HP / Rpm - 13 HP / 3600 Rpm
• Max Torque - 22N.m/2500rpm
• Shaft Type - Horizontal Key Shaft (Q Type)
• Shaft Diameter - 25.4mm
• Shaft Length - 72.2mm
• Shaft Rotation - Anti clockwise from output
• Compression Ratio - 8.2:1
• Fuel Type - Petrol
• Oil Type - SAE10w-30 / SAE30
• Fuel Tank Capacit - 6.5L
• Oil Capacity - 1.1L
• Ignition System - Transistor magneto
• Starting System - Electric Start / Recoil start
• Mounting Pattern - 195.5mm L x 86.0mm W - 103.0mm W
• Product Weight - 32kg
• Powered by Thornado 13HP (389cc), 4 Stroke OHV Engine
• 25.4mm Horizontal Key Shaft (Q Type)
• Key Start
• Camshaft and crankshaft are made of steel. (note: standard / low quali
• Durable cast iron cylinder withstands wear
• High quality carburettor for easy starting and operation
• Smooth running with minimal vibration
• Low oil sensor shuts down engine when oil reaches a level that is too
• Fuel shut off valve for safe transport
• High power to weight ratio
• 12 Months Australia Warranty

sku:  38_th-130qe
