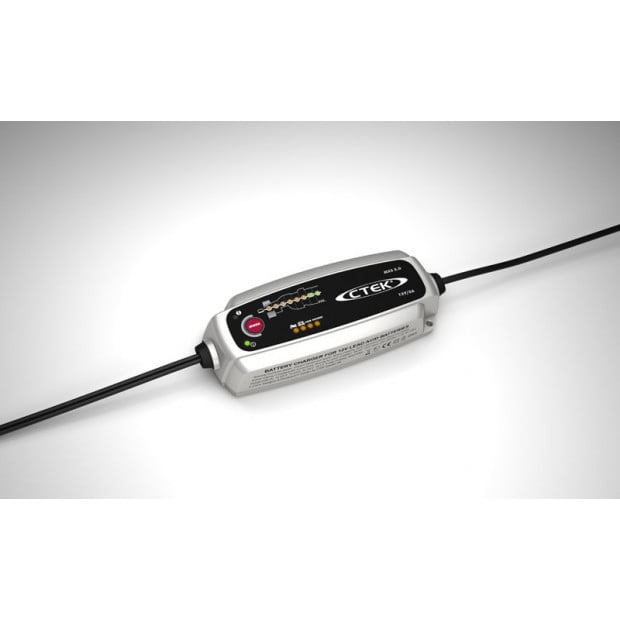

The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah.

The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands. Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries.

AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.



Specifications:

• Volt: 12V
• Rated Voltage: AC 220–240VAC, 50–60Hz
• Charging voltage: SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
• Min battery voltage: 2.0V
• Charging current: 5A max
• Current, mains: 0.6A rms (at full charging current)
• Back current drain <1Ah/month
• Ripple <4%
• Ambient temp -20°C to +50°C, output power is reduced automatically at high temperatures
• Charger type 8 step, fully automatic charging cycle
• Battery types All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
• Battery capacity 1.2–110Ah up to 160Ah for maintenance
• Dimensions 168 x 65 x 38mm (L x W x H)
• Insulation class IP65
• Weight 0.6kg
• Temperature Compensation Built in charge voltage compensation according to ambient temperature
