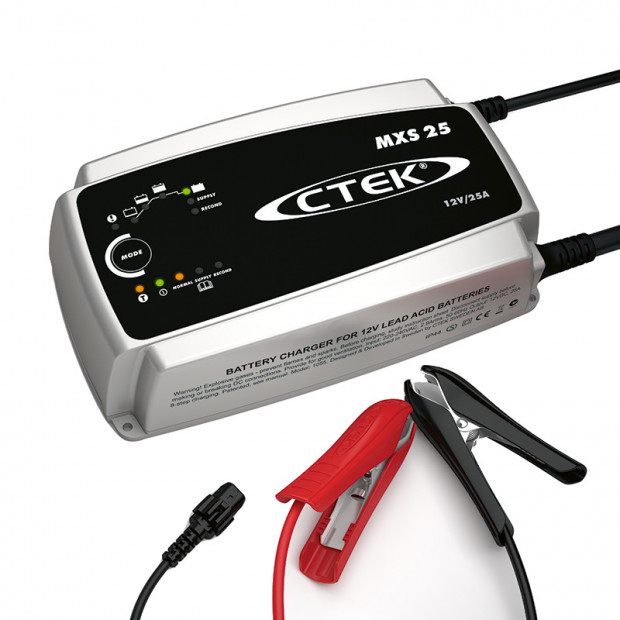

Ctek MXS 25.0 12V Car Battery Charger and Conditioner
It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions.
It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations.
The MXS 25 is a fully automatic 8-step charger that delivers 25A to 12V batteries from 40–500Ah. The charger is IP 44 classified (outdoor use), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. It is delivered with a 2-year warranty.
Supplied with clamps, temp sensor on cable.
Rated Voltage AC: 220–240VAC, 50–60Hz
Charging voltage - NORMAL: 14.4V, RECOND: 15.8V, SUPPLY: 13.6V
Min battery voltage - 2.0V
Charging current - 25A max
Current, mains - 2.9A rms (at full charging current)
Back current drain - <1Ah/month
Ripple - <4%
Ambient temperature - -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type 8 step, fully automatic charging cycle
Battery types - All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity - 40–500Ah up to 500Ah for maintenance
Dimensions - 235 x 130 x 65mm (L x W x H)
Insulation class - IP44
Weight - 1.9kg
