Cable Sheath Automotive Wire - 4MM
Klika
|
$0 today, 0% interest
|
Buy now. Pay smarter.
|
or 4 x $ 10.75
|
Our 4MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.
Features:
- 4MM twin sheath automotive cable
- Oxygen-free copper core conductor
- Low eccentricity
- Reinforced PVC material
- SAA-certified
- RoHS
In The Box:

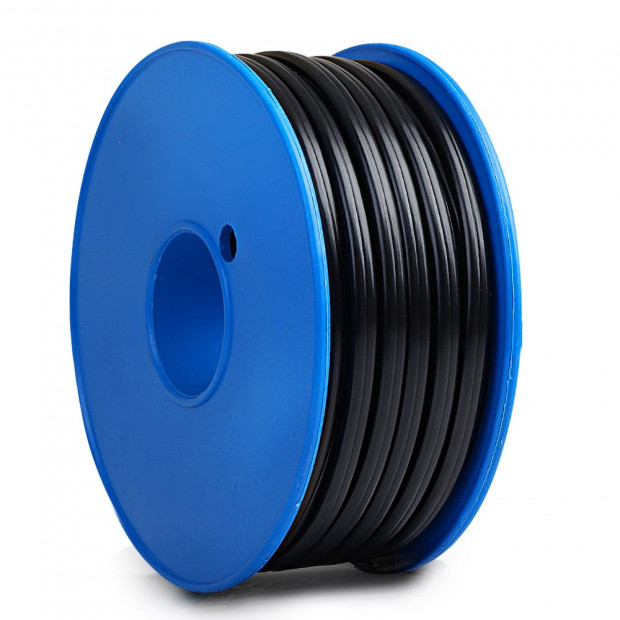

- 1 x Twin Core Cable
- 1 x Cable Spool
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 22
No. of cores: 2
Cable Length: 30m
Cable diameter: 4mm
Strand no. diameter: 23/0.32mm
Nominal area: 1.84mm2
Nominal O.D.: 3.8mm x 6.3mm
Colour: Black sheathing
Conductor resistance <10.1O/Km(20?)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength = 12.5Mpa
Unaged acceptable ultimate elongation =130%
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 22
No. of cores: 2
Cable Length: 30m
Cable diameter: 4mm
Strand no. diameter: 23/0.32mm
Nominal area: 1.84mm2
Nominal O.D.: 3.8mm x 6.3mm
Colour: Black sheathing
Conductor resistance <10.1O/Km(20?)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength = 12.5Mpa
Unaged acceptable ultimate elongation =130%
product code:3_n51sibsfzgbc
